Solenoid, Tubular, Pull Type, SOTUL032051

Technical specifications and dimensions for SOTUL032051

Solenoid, Tubular, Pull Type
item #: SOTUL032051

Name: Solenoid, Tubular, Pull Type
Brand: ElectroMechanicsOnline
SKU: SOTUL032051
Price: 110.6700 USD
Availability: InStock

Made in USA

Availability: in stock - available for immediate shipment

Series S-20-125

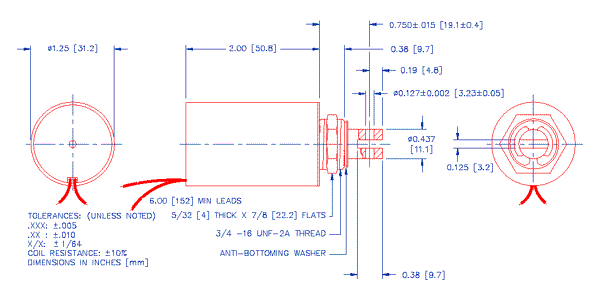

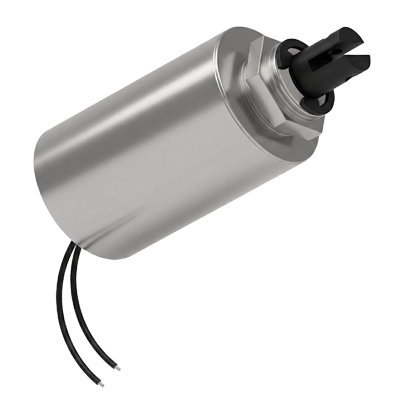

Tubular Solenoid, Pull type, 1.25" (32 mm) DIA X 2.00" (51 mm) L

Related Optional Products

Full Wave Bridge Rectifier

ELFWBL352

Solenoid Driver Module

ELSOSDM840

Unit Price:
1-4 pieces:	$110.67
5-9 pieces:	$97.10
10-24 pieces:	$86.56
25-49 pieces:	$77.37
50-99 pieces:	$66.72
Prices for larger quantities may be obtained by contacting us or by clicking the RFQ below.
OEM quantities, more than 100 units or special instructions:

select a DC voltage	06	09	12	18	24	30	36	48	72	120

select a duty cycle	C	I	L	P


Special Comments

Quantity adjustment on next page

Series S-20-125
Optional Plunger Return Spring: SP15, SP19, SP20, SP21

If the internal wire gauge for winding is predetermined or if the "voltage" is different from the above, enter the desired information in the above box labeled "Special Comments" and select the closest "voltage" and "duty cycle".

C = Continuous (100%) Duty Cycle, Maximum On-Time = Infinite
Approximate Input Power = 12 Watts
Force at 0.05" (1.3 mm) stroke: 88 Oz (24.4 N)
Force at 0.25" (6.4 mm) stroke: 28 Oz (7.9 N)
Force at 0.50" (12.7 mm) stroke: 11 Oz (3.1 N)
Force at 0.75" (19.1 mm) stroke: 5 Oz (1.5 N)
Force at 1.00" (25.4 mm) stroke: 2 Oz (0.6 N)

I = Intermittent (50%) Duty Cycle, Maximum On-Time = 240 Seconds
Approximate Input Power = 24 Watts
Force at 0.05" (1.3 mm) stroke: 106 Oz (29.4 N)
Force at 0.25" (6.4 mm) stroke: 47 Oz (12.9 N)
Force at 0.50" (12.7 mm) stroke: 22 Oz (6.1 N)
Force at 0.75" (19.1 mm) stroke: 11 Oz (3.0 N)
Force at 1.00" (25.4 mm) stroke: 4 Oz (1.2 N)

L = Long Pulse (25%) Duty Cycle, Maximum On-Time = 60 Seconds
Approximate Input Power = 48 Watts
Force at 0.05" (1.3 mm) stroke: 129 Oz (35.8 N)
Force at 0.25" (6.4 mm) stroke: 70 Oz (19.5 N)
Force at 0.50" (12.7 mm) stroke: 40 Oz (11.1 N)
Force at 0.75" (19.1 mm) stroke: 23 Oz (6.3 N)
Force at 1.00" (25.4 mm) stroke: 9 Oz (2.6 N)

P = Pulse (10%) Duty Cycle, Maximum On-Time = 20 Seconds
Approximate Input Power = 120 Watts
Force at 0.05" (1.3 mm) stroke: 155 Oz (43.1 N)
Force at 0.25" (6.4 mm) stroke: 109 Oz (30.2 N)
Force at 0.50" (12.7 mm) stroke: 75 Oz (20.8 N)
Force at 0.75" (19.1 mm) stroke: 53 Oz (14.8 N)
Force at 1.00" (25.4 mm) stroke: 24 Oz (6.8 N)

Tubular Solenoid, Pull type, 1.25"(32 mm)DIA X 2.00"(51 mm)L.
Mounting: Threaded front end and matching 3/4"-16 nut.
Minimum Heat Sink: Equivalent of 6.0" x 6.0" x 0.125" (152 mm x 152 mm x 3.2 mm) Aluminum Plate
All values are at 25ºC.

Duty Cycle= on time/(on time+off time) in one cycle of operation when voltage is being cycled on and off.

V = R × I
P = V × I = V² /R = R × I²

V = input D.C. voltage (volts)
R = solenoid resistance (ohms)
I = current used by solenoid (amperes)
P = input power to solenoid (watts)

Shipping Weight: 1.2 lb (0.5 kg)
