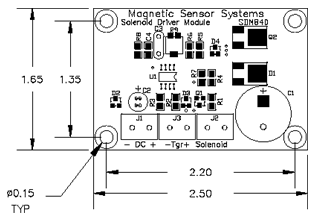

Technical specifications and dimensions for ELSOSDM840

Solenoid Driver Module
item #: ELSOSDM840

Name: Solenoid Driver Module
Brand: ElectroMechanicsOnline
SKU: ELSOSDM840
Price: 167.5300 USD
Availability: InStock

you may also consider

Solenoid Driver PWM Module

ELSOPWM400

Solenoid Driver Module

ELSOSDM840-1000

Unit Price:
1-4 pieces:	$167.53
5-9 pieces:	$146.97
10-24 pieces:	$131.07
25-49 pieces:	$118.16
50-99 pieces:	$107.37
Prices for larger quantities may be obtained by contacting us or by clicking the RFQ below.
OEM quantities, more than 100 units or special instructions:

Special Comments

Quantity adjustment on next page

One method of consuming less energy is to apply a voltage to the solenoid coil to provide the necessary force to pull the plunger in, then, when seated, drop the voltage down to a level sufficient to maintain the plunger in a seated position.

The Pick and Hold Module is designed to apply an initial higher voltage to the coil for a pre-determined period of time and then drop the voltage to a pre-determined percentage of the initial value through pulse width modulation to avoid over heating the solenoid coil

The above voltage sequence will be applied to the coil when a voltage (2 to 40 VDC) is applied to the trigger. The trigger voltage can be a secondary voltage (external trigger) or the same voltage used for input voltage (internal trigger).

This is particularly useful when a solenoid requiring a relatively large amount of power needs to be turned on and off with a low power trigger voltage such as a TTL compatible signal.

Parameter	Min	Typical	Max	Units
Supply Input Voltage	8		40	VDC
Peak Current			20	A
RMS Current			3	A
Command (Trigger) Range	2		40	VDC
Command Input Resistance	50			KOhms
Operating Temperature	0		80	Deg C
Storage Temperature	-40		125	Deg C
PWM Frequency		20		KHz
Peak Time		100*		mSec
Holding Voltage to Supply Voltage Ratio		30**		%

* Peak time can be made longer in factory on special orders.

** Holding voltage is preset in factory at 30% of input voltage.
This value can be adjusted with the potentiometer on the board.

Shipping Weight: 0.8 lb (0.4 kg)
