Solenoid, Tubular, Pull Type
item #: SOTUL013041

Made in USA

Availability: in stock - available for immediate shipment

Related Optional Products

Full Wave Bridge Rectifier

ELFWBL352

Solenoid Driver Module

ELSOSDM840

Unit Price:
1-4 pieces:	$51.27
5-9 pieces:	$45.01
10-24 pieces:	$40.11
25-49 pieces:	$35.83
50-99 pieces:	$30.90
Prices for larger quantities may be obtained by contacting us or by clicking the RFQ below.
OEM quantities, more than 100 units or special instructions:


select a DC voltage	03	06	09	12	18	24	30	36	48	72

select a duty cycle	C	I	L	P


Special Comments

Quantity adjustment on next page

Series S-16-50
Optional Plunger Return Spring: SP03 and SP05

If the internal wire gauge for winding is predetermined or if the "voltage" is different from the above, enter the desired information in the above box labeled "Special Comments" and select the closest "voltage" and "duty cycle".

C = Continuous (100%) Duty Cycle, Maximum On-Time = Infinite
Approximate Input Power = 4.5 Watts
Force at 0.05" (1.3 mm) stroke: 6.5 Oz (184 gr)
Force at 0.10" (2.5 mm) stroke: 3.0 Oz (85 gr)
Force at 0.25" (6.4 mm) stroke: 2.0 Oz (57 gr)
Force at 0.50" (12.7 mm) stroke: 1.5 Oz (43 gr)

I = Intermittent (50%) Duty Cycle, Maximum On-Time = 180 Seconds
Approximate Input Power = 9 Watts
Force at 0.05" (1.3 mm) stroke: 9.5 Oz (269 gr)
Force at 0.10" (2.5 mm) stroke: 5.0 Oz (142 gr)
Force at 0.25" (6.4 mm) stroke: 3.0 Oz (85 gr)
Force at 0.50" (12.7 mm) stroke: 2.5 Oz (71 gr)

L = Long Pulse (25%) Duty Cycle, Maximum On-Time = 50 Seconds
Approximate Input Power = 18 Watts
Force at 0.05" (1.3 mm) stroke: 14.0 Oz (397 gr)
Force at 0.10" (2.5 mm) stroke: 8.0 Oz (227 gr)
Force at 0.25" (6.4 mm) stroke: 5.0 Oz (142 gr)
Force at 0.50" (12.7 mm) stroke: 4.5 Oz (128 gr)

P = Pulse (10%) Duty Cycle, Maximum On-Time = 10 Seconds
Approximate Input Power = 45 Watts
Force at 0.05" (1.3 mm) stroke: 19.0 Oz (539 gr)
Force at 0.10" (2.5 mm) stroke: 12.5 Oz (354 gr)
Force at 0.25" (6.4 mm) stroke: 7.0 Oz (198 gr)
Force at 0.50" (12.7 mm) stroke: 6.5 Oz (184 gr)

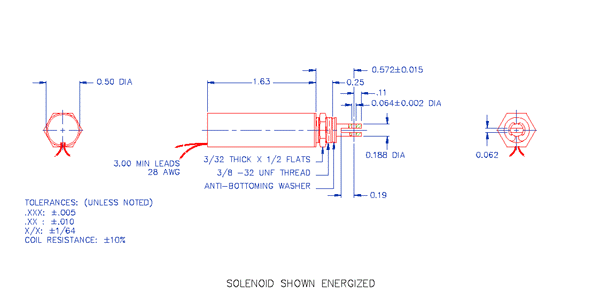

Tubular Solenoid, Pull type, 0.50"(13 mm) DIA X 1.63"(41 mm) L.
Mounting: Threaded front end and matching 3/8"-32 nut.
Minimum Heat Sink: Equivalent of 2.0" x 2.0" x 0.125" (51 mm x 51 mm x 3.2 mm) Aluminum Plate
All values are at 25ºC.

Duty Cycle= on time/(on time+off time) in one cycle of operation when voltage is being cycled on and off.

V = R × I
P = V × I = V² /R = R × I²

V = input D.C. voltage (volts)
R = solenoid resistance (ohms)
I = current used by solenoid (amperes)
P = input power to solenoid (watts)
