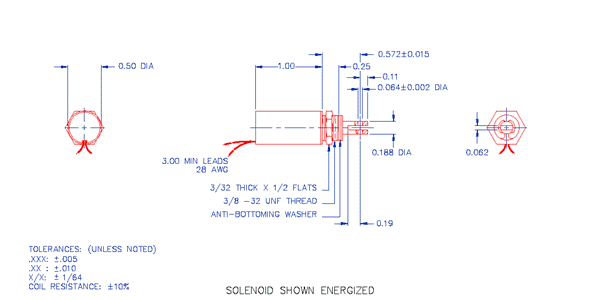

Quantity adjustment on next page Series S-10-50 Optional Plunger Return Spring: SP03 and SP05  If the internal wire gauge for winding is predetermined or if the "voltage" is different from the above, enter the desired information in the above box labeled "Special Comments" and select the closest "voltage" and "duty cycle". C = Continuous (100%) Duty Cycle, Maximum On-Time = Infinite Approximate Input Power = 4 Watts Force at 0.05" (1.3 mm) stroke: 7.0 Oz (198 gr) Force at 0.10" (2.5 mm) stroke: 2.5 Oz (71 gr) Force at 0.25" (6.4 mm) stroke: 0.5 Oz (14 gr) I = Intermittent (50%) Duty Cycle, Maximum On-Time = 75 Seconds Approximate Input Power = 8 Watts Force at 0.05" (1.3 mm) stroke: 11.0 Oz (312 gr) Force at 0.10" (2.5 mm) stroke: 5.0 Oz (142 gr) Force at 0.25" (6.4 mm) stroke: 1.2 Oz (34 gr) L = Long Pulse (25%) Duty Cycle, Maximum On-Time = 20 Seconds Approximate Input Power = 16 Watts Force at 0.05" (1.3 mm) stroke: 18.0 Oz (510 gr) Force at 0.10" (2.5 mm) stroke: 9.5 Oz (269 gr) Force at 0.25" (6.4 mm) stroke: 2.5 Oz (71 gr) P = Pulse (10%) Duty Cycle, Maximum On-Time = 5 Seconds Approximate Input Power = 40 Watts Force at 0.05" (1.3 mm) stroke: 25.0 Oz (709 gr) Force at 0.10" (2.5 mm) stroke: 15.0 Oz (425 gr) Force at 0.25" (6.4 mm) stroke: 6.0 Oz (170 gr) Force at 0.375" (9.5 mm) stroke: 2.0 Oz (57 gr) Tubular Solenoid, Pull type, 0.50"(13 mm) DIA X 1.00"(25 mm) L. Mounting: Threaded front end and matching 3/8"-32 nut. Minimum Heat Sink: Equivalent of 2.0" x 2.0" x 0.125" (51 mm x 51 mm x 3.2 mm) Aluminum Plate All values are at 25ºC. Duty Cycle= on time/(on time+off time) in one cycle of operation when voltage is being cycled on and off. V = R × I P = V × I = V² /R = R × I² V = input D.C. voltage (volts) R = solenoid resistance (ohms) I = current used by solenoid (amperes) P = input power to solenoid (watts) Quantity adjustment on next page
|
