Solenoid, Tubular, Pull Type
item #: SOTUL010025

Made in USA



Availability:   in stock - available for immediate shipment

Related Optional Products
On-Off Power Cycling Module - Adjustable Duty
ELSOOPC955

Solenoid Driver Module
ELSOSDM840

Unit Price:
1-4 pieces: $44.81
5-9 pieces: $39.31
10-24 pieces: $35.06
25-49 pieces: $31.35
50-99 pieces: $27.04
Prices for larger quantities may be obtained by contacting us or by clicking the RFQ below.
OEM quantities, more than 100 units or special instructions:

select a DC voltage
03
06
09
12
15
18
21
24
30
36

select a duty cycle
C
I
L
P
Special Comments



Quantity adjustment on next page

Series S-10-38
Optional Plunger Return Spring: SP04, SP06, SP08



If the internal wire gauge for winding is predetermined or if the "voltage" is different from the above, enter the desired information in the above box labeled "Special Comments" and select the closest "voltage" and "duty cycle".

C = Continuous (100%) Duty Cycle, Maximum On-Time = Infinite
Approximate Input Power = 2 Watts
Force at 0.01" (0.3 mm) stroke: 7.4 Oz (2.05 N)
Force at 0.05" (1.3 mm) stroke: 2.2 Oz (0.60 N)
Force at 0.10" (2.5 mm) stroke: 1.0 Oz (0.29 N)
Force at 0.20" (5.1 mm) stroke: 0.5 Oz (0.15 N)
Force at 0.30" (7.6 mm) stroke: 0.4 Oz (0.10 N)
Force at 0.40" (10.2 mm) stroke: 0.2 Oz (0.06 N)

I = Intermittent (50%) Duty Cycle, Maximum On-Time = 65 Seconds
Approximate Input Power = 4 Watts
Force at 0.01" (0.3 mm) stroke: 9.0 Oz (2.50 N)
Force at 0.05" (1.3 mm) stroke: 3.3 Oz (0.93 N)
Force at 0.10" (2.5 mm) stroke: 1.9 Oz (0.52 N)
Force at 0.20" (5.1 mm) stroke: 1.1 Oz (0.31 N)
Force at 0.30" (7.6 mm) stroke: 0.7 Oz (0.21 N)
Force at 0.40" (10.2 mm) stroke: 0.5 Oz (0.13 N)
Force at 0.50" (12.7 mm) stroke: 0.2 Oz (0.07 N)
Force at 0.60" (15.2 mm) stroke: 0.1 Oz (0.03 N)

L = Long Pulse (25%) Duty Cycle, Maximum On-Time = 15 Seconds
Approximate Input Power = 8 Watts
Force at 0.01" (0.3 mm) stroke: 10.5 Oz (2.93 N)
Force at 0.05" (1.3 mm) stroke: 4.8 Oz (1.33 N)
Force at 0.10" (2.5 mm) stroke: 2.8 Oz (0.78 N)
Force at 0.20" (5.1 mm) stroke: 1.8 Oz (0.51 N)
Force at 0.30" (7.6 mm) stroke: 1.3 Oz (0.37 N)
Force at 0.40" (10.2 mm) stroke: 0.8 Oz (0.23 N)
Force at 0.50" (12.7 mm) stroke: 0.4 Oz (0.12 N)
Force at 0.60" (15.2 mm) stroke: 0.2 Oz (0.05 N)

P = Pulse (10%) Duty Cycle, Maximum On-Time = 4 Seconds
Approximate Input Power = 20 Watts
Force at 0.01" (0.3 mm) stroke: 12.0 Oz (3.33 N)
Force at 0.05" (1.3 mm) stroke: 6.6 Oz (1.83 N)
Force at 0.10" (2.5 mm) stroke: 4.3 Oz (1.20 N)
Force at 0.20" (5.1 mm) stroke: 3.3 Oz (0.93 N)
Force at 0.30" (7.6 mm) stroke: 3.0 Oz (0.84 N)
Force at 0.40" (10.2 mm) stroke: 2.2 Oz (0.60 N)
Force at 0.50" (12.7 mm) stroke: 1.1 Oz (0.32 N)
Force at 0.60" (15.2 mm) stroke: 0.4 Oz (0.11 N)
Force at 0.70" (17.8 mm) stroke: 0.1 Oz (0.02 N)

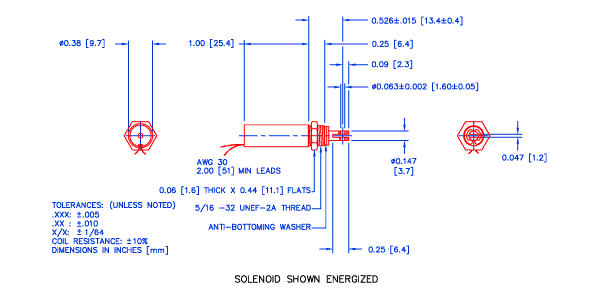

Tubular Solenoid, Pull type, 0.38"(9.7 mm) DIA X 1.00"(25.4 mm) L.
Mounting: Threaded front end and matching 5/16"-32 nut.
Minimum Heat Sink: Equivalent of 2.0" x 2.0" x 0.125" (51 mm x 51 mm x 3.2 mm) Aluminum Plate
All values are at 25ºC.

Duty Cycle= on time/(on time+off time) in one cycle of operation when voltage is being cycled on and off.

V = R × I
P = V × I = V² /R = R × I²

V = input D.C. voltage (volts)
R = solenoid resistance (ohms)
I = current used by solenoid (amperes)
P = input power to solenoid (watts)
