Solenoid, Tubular, Pull Type, SOTUL010017

Technical specifications and dimensions for SOTUL010017

Solenoid, Tubular, Pull Type
item #: SOTUL010017

Name: Solenoid, Tubular, Pull Type
Brand: ElectroMechanicsOnline
SKU: SOTUL010017
Price: 39.5300 USD
Availability: InStock

Made in USA

Availability: in stock - available for immediate shipment

Series S-63-38S
Tubular Solenoid, Pull type, 0.38"(10 mm) DIA X 0.66"(17 mm) L

Related Optional Products

Full Wave Bridge Rectifier

ELFWBL352

Solenoid Driver Module

ELSOSDM840

Unit Price:
1-4 pieces:	$39.53
5-9 pieces:	$34.68
10-24 pieces:	$30.95
25-49 pieces:	$27.65
50-99 pieces:	$23.84
Prices for larger quantities may be obtained by contacting us or by clicking the RFQ below.
OEM quantities, more than 100 units or special instructions:

select a DC voltage	03	06	09	12	15	18	21	24	30

select a duty cycle	C	I	L	P


Special Comments

Quantity adjustment on next page

Series S-63-38S
Built-in Plunger Return Spring: SP01 or SP00
If used in a continuous duty, SP01 spring may not be appropriate due to excessive stiffness. The recommended spring for contimuous duty is SP00 which should be specifically requested within the above box marked "special comments".

If the internal wire gauge for winding is predetermined or if the "voltage" is different from the above, enter the desired information in the above box labeled "Special Comments" and select the closest "voltage" and "duty cycle".

Built-in Return Spring
Spring Force: 0.9 Oz (25 gr) (see the above statement regarding springs)

C = Continuous (100%) Duty Cycle, Maximum On-Time = Infinite
Approximate Input Power = 2 Watts
Gross Force at 0.01" (0.25 mm) stroke: 3.0 Oz (85 gr)
Gross Force at 0.04" (1.0 mm) stroke: 0.8 Oz (23 gr)
Gross Force at 0.08" (2.3 mm) stroke: 0.6 Oz (17 gr)
Available for voltages equal to or less than 24 Volts DC for this duty cycle

I = Intermittent (50%) Duty Cycle, Maximum On-Time = 25 Seconds
Approximate Input Power = 4 Watts
Gross Force at 0.01" (0.25 mm) stroke: 4.8 Oz (136 gr)
Gross Force at 0.04" (1.0 mm) stroke: 1.8 Oz (51 gr)
Gross Force at 0.08" (2.3 mm) stroke: 0.9 Oz (26 gr)

L = Long Pulse (25%) Duty Cycle, Maximum On-Time = 6 Seconds
Approximate Input Power = 8 Watts
Gross Force at 0.01" (0.25 mm) stroke: 6.5 Oz (184 gr)
Gross Force at 0.04" (1.0 mm) stroke: 2.5 Oz (71 gr)
Gross Force at 0.08" (2.3 mm) stroke: 1.5 Oz (43 gr)

P = Pulse (10%) Duty Cycle, Maximum On-Time = 0.5 Seconds
Approximate Input Power = 20 Watts
Gross Force at 0.01" (0.25 mm) stroke: 9.5 Oz (269 gr)
Gross Force at 0.04" (1.0 mm) stroke: 4.8 Oz (136 gr)
Gross Force at 0.08" (2.3 mm) stroke: 3.0 Oz (85 gr)

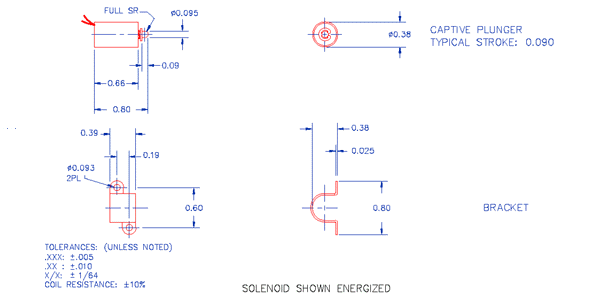

Tubular Solenoid, Pull type, 0.38" (10 mm) DIA X 0.66"(17 mm) L.
Mounting: Optional bracket supplied with the solenoid.
Captive Plunger
Maximum Stroke Limited to 0.09" (2.3 mm) Typical
Minimum Heat Sink: Equivalent of 2.0" x 2.0" x 0.125" (51 mm x 51 mm x 3.2 mm) Aluminum Plate
All values are at 25ºC.

Duty Cycle= on time/(on time+off time) in one cycle of operation when voltage is being cycled on and off.

V = R × I
P = V × I = V² /R = R × I²

V = input D.C. voltage (volts)
R = solenoid resistance (ohms)
I = current used by solenoid (amperes)
P = input power to solenoid (watts)

Shipping Weight: 0.5 lb (0.2 kg)
