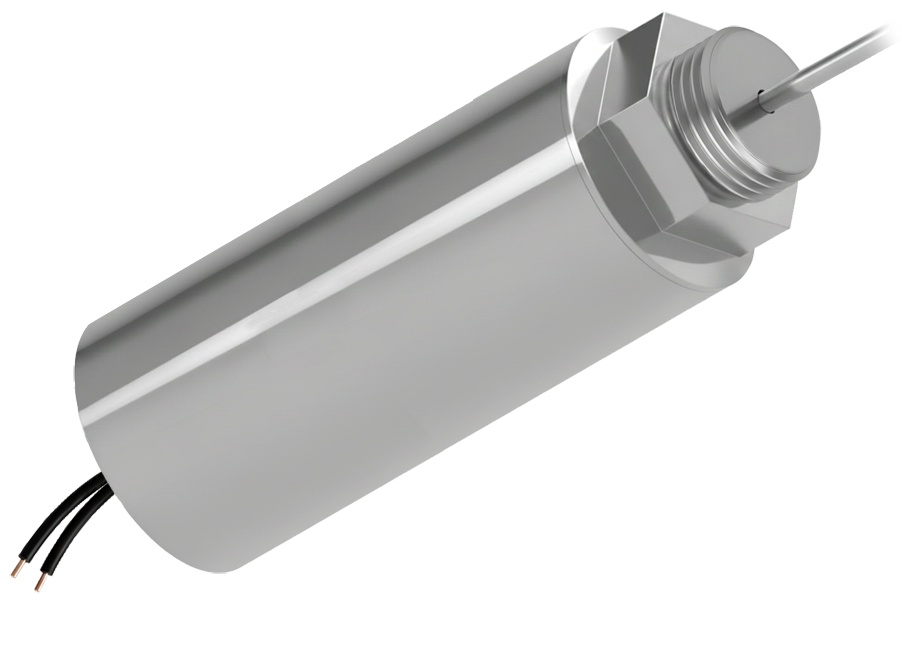

Solenoid, Tubular, Push Type
item #: SOTUH076178

Made in USA

Availability: in stock - available for immediate shipment

Related Optional Products

Full Wave Bridge Rectifier

ELFWBL352

Solenoid Driver Module

ELSOSDM840

Unit Price:
1-4 pieces:	$1,335.11
5-9 pieces:	$1,171.13
10-24 pieces:	$1,044.29
25-49 pieces:	$933.23
50-99 pieces:	$804.87
Prices for larger quantities may be obtained by contacting us or by clicking the RFQ below.
OEM quantities, more than 100 units or special instructions:


select a DC voltage	09	12	18	24	30	36	48	72	120	240

select a duty cycle	C	I	L	P


Special Comments

Quantity adjustment on next page

Series S-70-300-H

If the internal wire gauge for winding is predetermined or if the "voltage" is different from the above, enter the desired information in the above box labeled "Special Comments" and select the closest "voltage" and "duty cycle".

C = Continuous (100%) Duty Cycle, Maximum On-Time = Infinite
Approximate Input Power = 35 Watts
Force at 0.10" (2.5 mm) stroke: 740.0 Oz (20979 gr)
Force at 1.00" (25.4 mm) stroke: 160.0 Oz (4536 gr)
Force at 2.75" (69.9 mm) stroke: 48.0 Oz (1361 gr)
Available for voltages equal to or greater than 9 Volts DC

I = Intermittent (50%) Duty Cycle, Maximum On-Time = 1700 Seconds
Approximate Input Power = 70 Watts
Force at 0.10" (2.5 mm) stroke: 960.0 Oz (27216 gr)
Force at 1.00" (25.4 mm) stroke: 256.0 Oz (7258 gr)
Force at 3.00" (76.2 mm) stroke: 80.0 Oz (2268 gr)
Available for voltages equal to or greater than 12 Volts DC

L = Long Pulse (25%) Duty Cycle, Maximum On-Time = 580 Seconds
Approximate Input Power = 140 Watts
Force at 0.10" (2.5 mm) stroke: 1050.0 Oz (29768 gr)
Force at 1.00" (25.4 mm) stroke: 390.0 Oz (11057 gr)
Force at 3.00" (76.2 mm) stroke: 160.0 Oz (4536 gr)
Force at 3.75" (95.3 mm) stroke: 65.0 Oz (1843 gr)
Available for voltages equal to or greater than 18 Volts DC

P = Pulse (10%) Duty Cycle, Maximum On-Time = 190 Seconds
Approximate Input Power = 350 Watts
Force at 0.10" (2.5 mm) stroke: 1340.0 Oz (37989 gr)
Force at 1.00" (25.4 mm) stroke: 640.0 Oz (18144 gr)
Force at 3.00" (76.2 mm) stroke: 375.0 Oz (10631 gr)
Force at 4.25" (108.0 mm) stroke: 75.0 Oz (2126 gr)
Available for voltages equal to or greater than 30 Volts DC

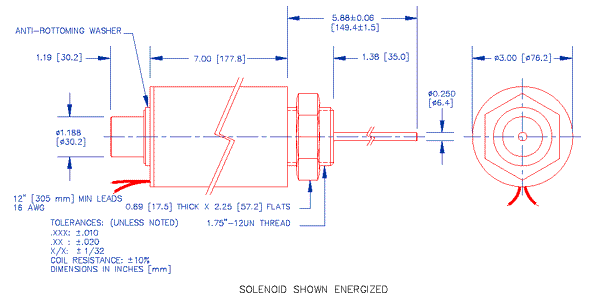

Tubular Solenoid, Push type, 3.00"(76 mm)DIA X 7.00"(178 mm)L.
Mounting: Threaded front end and matching 1.75"-12 nut.
Minimum Heat Sink: Equivalent of 12.0" x 12.0" x 0.125" (305 mm x 305 mm x 3.2 mm) Aluminum Plate
All values are at 25ºC.

Duty Cycle= on time/(on time+off time) in one cycle of operation when voltage is being cycled on and off.

V = R × I
P = V × I = V² /R = R × I²

V = input D.C. voltage (volts)
R = solenoid resistance (ohms)
I = current used by solenoid (amperes)
P = input power to solenoid (watts)
