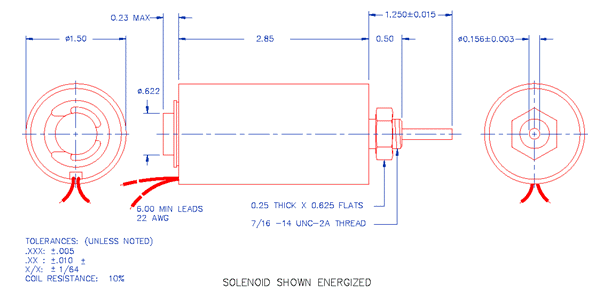

Quantity adjustment on next page Series S-29-150-H Optional Plunger Return Spring: SP30 and SP31  If the internal wire gauge for winding is predetermined or if the "voltage" is different from the above, enter the desired information in the above box labeled "Special Comments" and select the closest "voltage" and "duty cycle". C = Continuous (100%) Duty Cycle, Maximum On-Time = Infinite Approximate Input Power = 14 Watts Force at 0.10" (2.5 mm) stroke: 140.0 Oz (3969 gr) Force at 0.50" (12.7 mm) stroke: 22.0 Oz (624 gr) Force at 1.00" (25.4 mm) stroke: 7.0 Oz (198 gr) I = Intermittent (50%) Duty Cycle, Maximum On-Time = 780 Seconds Approximate Input Power = 28 Watts Force at 0.10" (2.5 mm) stroke: 210.0 Oz (5954 gr) Force at 0.50" (12.7 mm) stroke: 44.0 Oz (1247 gr) Force at 1.00" (25.4 mm) stroke: 16.0 Oz (454 gr) L = Long Pulse (25%) Duty Cycle, Maximum On-Time = 180 Seconds Approximate Input Power = 56 Watts Force at 0.10" (2.5 mm) stroke: 245.0 Oz (6946 gr) Force at 0.50" (12.7 mm) stroke: 70.0 Oz (1985 gr) Force at 1.00" (25.4 mm) stroke: 25.0 Oz (709 gr) P = Pulse (10%) Duty Cycle, Maximum On-Time = 70 Seconds Approximate Input Power = 140 Watts Force at 0.10" (2.5 mm) stroke: 340.0 Oz (9639 gr) Force at 0.50" (12.7 mm) stroke: 160.0 Oz (4536 gr) Force at 1.00" (25.4 mm) stroke: 80.0 Oz (2268 gr) Tubular Solenoid, push type, 1.50" (38 mm) DIA X 2.85" (72 mm) L. Mounting: Threaded front end and matching 7/16"-14 nut. Minimum Heat Sink: Equivalent of 6.0" x 6.0" x 0.125" (152 mm x 152 mm x 3.2 mm) Aluminum Plate All values are at 25ºC. Duty Cycle= on time/(on time+off time) in one cycle of operation when voltage is being cycled on and off. V = R × I P = V × I = V² /R = R × I² V = input D.C. voltage (volts) R = solenoid resistance (ohms) I = current used by solenoid (amperes) P = input power to solenoid (watts) Quantity adjustment on next page
|
