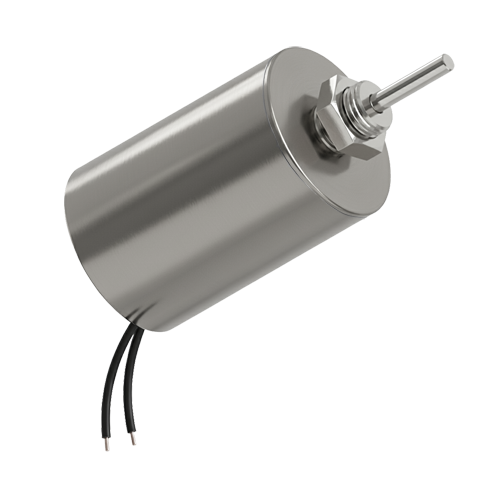

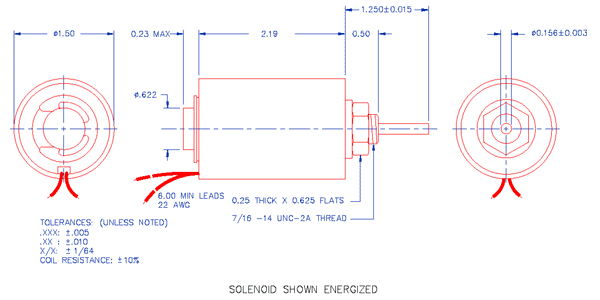

Quantity adjustment on next page Series S-22-150-H Optional Plunger Return Spring: SP30 and SP31  If the internal wire gauge for winding is predetermined or if the "voltage" is different from the above, enter the desired information in the above box labeled "Special Comments" and select the closest "voltage" and "duty cycle". C = Continuous (100%) Duty Cycle, Maximum On-Time = Infinite Approximate Input Power = 10 Watts Force at 0.10" (2.5 mm) stroke: 64.0 Oz (1814 gr) Force at 0.50" (12.7 mm) stroke: 8.0 Oz (227 gr) Force at 1.00" (25.4 mm) stroke: 1.5 Oz (43 gr) I = Intermittent (50%) Duty Cycle, Maximum On-Time = 580 Seconds Approximate Input Power = 20 Watts Force at 0.10" (2.5 mm) stroke: 160.0 Oz (4536 gr) Force at 0.50" (12.7 mm) stroke: 21.0 Oz (595 gr) Force at 1.00" (25.4 mm) stroke: 2.0 Oz (57 gr) L = Long Pulse (25%) Duty Cycle, Maximum On-Time = 210 Seconds Approximate Input Power = 40 Watts Force at 0.10" (2.5 mm) stroke: 198.0 Oz (5613 gr) Force at 0.50" (12.7 mm) stroke: 38.0 Oz (1077 gr) Force at 1.00" (25.4 mm) stroke: 6.0 Oz (170 gr) P = Pulse (10%) Duty Cycle, Maximum On-Time = 56 Seconds Approximate Input Power = 100 Watts Force at 0.10" (2.5 mm) stroke: 310.0 Oz (8789 gr) Force at 0.50" (12.7 mm) stroke: 100.0 Oz (2835 gr) Force at 1.00" (25.4 mm) stroke: 18.0 Oz (510 gr) Tubular Solenoid, Push type, 1.50" (38 mm) DIA X 2.19" (56 mm) L. Mounting: Threaded front end and matching 7/16"-14 nut. Minimum Heat Sink: Equivalent of 6.0" x 6.0" x 0.125" (152 mm x 152 mm x 3.2 mm) Aluminum Plate All values are at 25ºC. Duty Cycle= on time/(on time+off time) in one cycle of operation when voltage is being cycled on and off. V = R × I P = V × I = V² /R = R × I² V = input D.C. voltage (volts) R = solenoid resistance (ohms) I = current used by solenoid (amperes) P = input power to solenoid (watts) Quantity adjustment on next page
|
