Solenoid, Tubular, Push Type, SOTUH013041

Technical specifications and dimensions for SOTUH013041

Solenoid, Tubular, Push Type
item #: SOTUH013041

Name: Solenoid, Tubular, Push Type
Brand: ElectroMechanicsOnline
SKU: SOTUH013041
Price: 61.2100 USD
Availability: InStock

Made in USA

Availability: in stock - available for immediate shipment

Series S-16-50-H
Tubular Solenoid, Push type, 0.5"(13mm) DIA X 1.63"(41 mm) L

Related Optional Products

Full Wave Bridge Rectifier

ELFWBL352

Solenoid Driver Module

ELSOSDM840

Unit Price:
1-4 pieces:	$61.21
5-9 pieces:	$53.70
10-24 pieces:	$47.88
25-49 pieces:	$42.78
50-99 pieces:	$36.87
Prices for larger quantities may be obtained by contacting us or by clicking the RFQ below.
OEM quantities, more than 100 units or special instructions:

select a DC voltage	03	06	09	12	18	24	30	36	48	72

select a duty cycle	C	I	L	P


Special Comments

Quantity adjustment on next page

Series S-16-50-H
Optional Plunger Return Spring: SP02

If the internal wire gauge for winding is predetermined or if the "voltage" is different from the above, enter the desired information in the above box labeled "Special Comments" and select the closest "voltage" and "duty cycle".

C = Continuous (100%) Duty Cycle, Maximum On-Time = Infinite
Approximate Input Power = 4.5 Watts
Force at 0.05" (1.3 mm) stroke: 8.0 Oz (227 gr)
Force at 0.10" (2.5 mm) stroke: 3.0 Oz (85 gr)
Force at 0.25" (6.4 mm) stroke: 1.5 Oz (43 gr)
Force at 0.50" (12.7 mm) stroke: 1.0 Oz (28 gr)

I = Intermittent (50%) Duty Cycle, Maximum On-Time = 180 Seconds
Approximate Input Power = 9 Watts
Force at 0.05" (1.3 mm) stroke: 11.0 Oz (312 gr)
Force at 0.10" (2.5 mm) stroke: 6.0 Oz (170 gr)
Force at 0.25" (6.4 mm) stroke: 2.5 Oz (71 gr)
Force at 0.50" (12.7 mm) stroke: 2.0 Oz (57 gr)

L = Long Pulse (25%) Duty Cycle, Maximum On-Time = 50 Seconds
Approximate Input Power = 18 Watts
Force at 0.05" (1.3 mm) stroke: 15.0 Oz (425 gr)
Force at 0.10" (2.5 mm) stroke: 9.0 Oz (255 gr)
Force at 0.25" (6.4 mm) stroke: 5.0 Oz (142 gr)
Force at 0.50" (12.7 mm) stroke: 4.0 Oz (113 gr)

P = Pulse (10%) Duty Cycle, Maximum On-Time = 10 Seconds
Approximate Input Power = 45 Watts
Force at 0.05" (1.3 mm) stroke: 21.0 Oz (595 gr)
Force at 0.10" (2.5 mm) stroke: 14.0 Oz (397 gr)
Force at 0.25" (6.4 mm) stroke: 7.5 Oz (213 gr)
Force at 0.50" (12.7 mm) stroke: 7.0 Oz (198 gr)

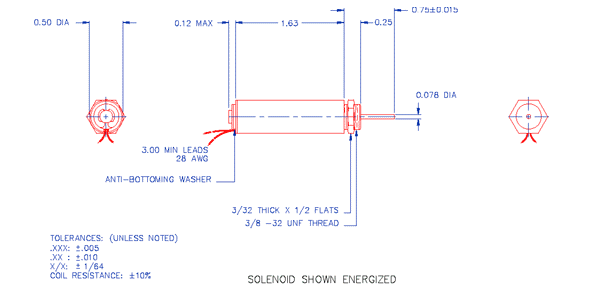

Tubular Solenoid, Push type, 0.50"(13 mm) DIA X 1.63"(41 mm) L.
Mounting: Threaded front end and matching 3/8"-32 nut.
Minimum Heat Sink: Equivalent of 2.0" x 2.0" x 0.125" (51 mm x 51 mm x 3.2 mm) Aluminum Plate
All values are at 25ºC.

Duty Cycle= on time/(on time+off time) in one cycle of operation when voltage is being cycled on and off.

V = R × I
P = V × I = V² /R = R × I²

V = input D.C. voltage (volts)
R = solenoid resistance (ohms)
I = current used by solenoid (amperes)
P = input power to solenoid (watts)

Shipping Weight: 0.6 lb (0.3 kg)

Quantity adjustment on next page

Solenoid, Tubular, Push Type item #: SOTUH013041

Solenoid, Tubular, Push Type
item #: SOTUH013041
