Solenoid, Tubular, Push Type, SOTUH010018

Technical specifications and dimensions for SOTUH010018

Solenoid, Tubular, Push Type
item #: SOTUH010018

Name: Solenoid, Tubular, Push Type
Brand: ElectroMechanicsOnline
SKU: SOTUH010018
Price: 44.4800 USD
Availability: InStock

Made in USA

Availability: in stock - available for immediate shipment

Series S-69-38-H
Tubular Solenoid, Push type, 0.38"(9.7 mm) DIA X 0.69"(17.5 mm) L

Related Optional Products

Full Wave Bridge Rectifier

ELFWBL352

Solenoid Driver Module

ELSOSDM840

Unit Price:
1-4 pieces:	$44.48
5-9 pieces:	$39.01
10-24 pieces:	$34.74
25-49 pieces:	$31.11
50-99 pieces:	$26.80
Prices for larger quantities may be obtained by contacting us or by clicking the RFQ below.
OEM quantities, more than 100 units or special instructions:

select a DC voltage	03	06	09	12	15	18	21	24	30

select a duty cycle	C	I	L	P


Special Comments

Quantity adjustment on next page

Series S-69-38-H
Optional Plunger Return Spring: SP04, SP06, SP08

If the internal wire gauge for winding is predetermined or if the "voltage" is different from the above, enter the desired information in the above box labeled "Special Comments" and select the closest "voltage" and "duty cycle".

C = Continuous (100%) Duty Cycle, Maximum On-Time = Infinite
Approximate Input Power = 2 Watts
Force at 0.01" (0.3 mm) stroke: 5.1 Oz (1.42 N)
Force at 0.05" (1.3 mm) stroke: 0.9 Oz (0.24 N)
Force at 0.07" (1.8 mm) stroke: 0.3 Oz (0.10 N)
Available for voltages equal to or less than 24 Volts DC for this duty cycle

I = Intermittent (50%) Duty Cycle, Maximum On-Time = 65 Seconds
Approximate Input Power = 4 Watts
Force at 0.01" (0.3 mm) stroke: 7.9 Oz (2.20 N)
Force at 0.05" (1.3 mm) stroke: 2.1 Oz (0.58 N)
Force at 0.09" (2.3 mm) stroke: 0.4 Oz (0.12 N)

L = Long Pulse (25%) Duty Cycle, Maximum On-Time = 15 Seconds
Approximate Input Power = 8 Watts
Force at 0.01" (0.3 mm) stroke: 10.7 Oz (2.98 N)
Force at 0.05" (1.3 mm) stroke: 4.5 Oz (1.26 N)
Force at 0.10" (2.5 mm) stroke: 1.2 Oz (0.34 N)
Force at 0.15" (3.8 mm) stroke: 0.4 Oz (0.12 N)

P = Pulse (10%) Duty Cycle, Maximum On-Time = 4 Seconds
Approximate Input Power = 20 Watts
Force at 0.01" (0.3 mm) stroke: 14.5 Oz (4.02 N)
Force at 0.05" (1.3 mm) stroke: 9.1 Oz (2.54 N)
Force at 0.10" (2.5 mm) stroke: 4.1 Oz (1.15 N)
Force at 0.15" (3.8 mm) stroke: 2.1 Oz (0.58 N)
Force at 0.20" (5.1 mm) stroke: 1.1 Oz (0.30 N)
Force at 0.25" (6.4 mm) stroke: 0.5 Oz (0.13 N)

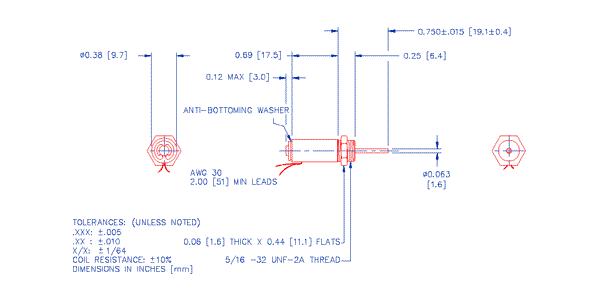

Tubular Solenoid, Push type, 0.38"(9.7 mm) DIA X 0.69"(17.5 mm) L.
Mounting: Threaded front end and matching 5/16"-32 nut.
Minimum Heat Sink: Equivalent of 2.0" x 2.0" x 0.125" (51 mm x 51 mm x 3.2 mm) Aluminum Plate
All values are at 25ºC.

Duty Cycle= on time/(on time+off time) in one cycle of operation when voltage is being cycled on and off.

V = R × I
P = V × I = V² /R = R × I²

V = input D.C. voltage (volts)
R = solenoid resistance (ohms)
I = current used by solenoid (amperes)
P = input power to solenoid (watts)

Shipping Weight: 0.5 lb (0.2 kg)
