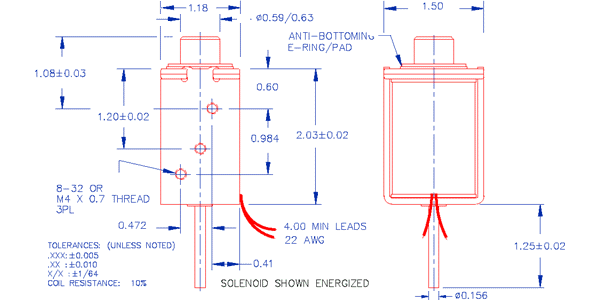

Quantity adjustment on next page Series S-20-150-H Optional Plunger Return Spring: SP30 and SP31 If the internal wire gauge for winding is predetermined or if the "voltage" is different from the above, enter the desired information in the above box labeled "Special Comments" and select the closest "voltage" and "duty cycle". C = Continuous (100%) Duty Cycle, Maximum On-Time = Infinite Approximate Input Power = 10 Watts Force at 0.10" (2.5 mm) stroke: 70.0 Oz (1985 gr) Force at 0.50" (12.7 mm) stroke: 8.0 Oz (227 gr) Force at 1.00" (25.4 mm) stroke: 1.2 Oz (34 gr) I = Intermittent (50%) Duty Cycle, Maximum On-Time = 200 Seconds Approximate Input Power = 20 Watts Force at 0.10" (2.5 mm) stroke: 120.0 Oz (3402 gr) Force at 0.50" (12.7 mm) stroke: 15.0 Oz (425 gr) Force at 1.00" (25.4 mm) stroke: 1.8 Oz (51 gr) L = Long Pulse (25%) Duty Cycle, Maximum On-Time = 100 Seconds Approximate Input Power = 40 Watts Force at 0.10" (2.5 mm) stroke: 160.0 Oz (4536 gr) Force at 0.50" (12.7 mm) stroke: 31.0 Oz (879 gr) Force at 1.00" (25.4 mm) stroke: 3.0 Oz (85 gr) P = Pulse (10%) Duty Cycle, Maximum On-Time = 30 Seconds Approximate Input Power = 100 Watts Force at 0.10" (2.5 mm) stroke: 270.0 Oz (7655 gr) Force at 0.50" (12.7 mm) stroke: 82.0 Oz (2325 gr) Force at 1.00" (25.4 mm) stroke: 12.0 Oz (340 gr) Open (Box D) Frame Solenoid, push type, 1.18" (30 mm) W X 1.50" (38 mm) H X 2.03" (52 mm) L. Mounting: Two tapped holes 8-32 (or M4 X 0.7) on the body. Minimum Heat Sink: Equivalent of 4.0" x 4.0" x 0.125" (102 mm x 102 mm x 3.2 mm) Aluminum Plate All values are at 25ºC. Duty Cycle= on time/(on time+off time) in one cycle of operation when voltage is being cycled on and off. V = R × I P = V × I = V² /R = R × I² V = input D.C. voltage (volts) R = solenoid resistance (ohms) I = current used by solenoid (amperes) P = input power to solenoid (watts) Quantity adjustment on next page |
