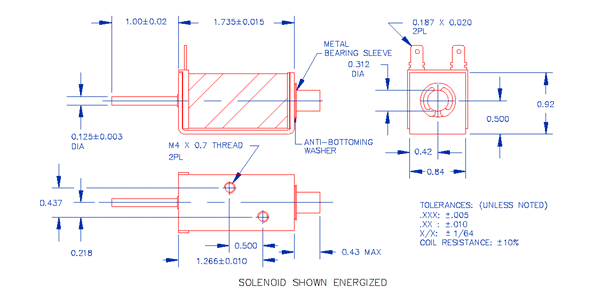

Quantity adjustment on next page Series S-17-85-QH Optional Plunger Return Springs: SP10 and SP11 If the internal wire gauge for winding is predetermined or if the "voltage" is different from the above, enter the desired information in the above box labeled "Special Comments" and select the closest "voltage" and "duty cycle". C = Continuous (100%) Duty Cycle, Maximum On-Time = Infinite Approximate Input Power = 5 Watts Force at 0.10" (2.5 mm) stroke: 18.0 Oz (510 gr) Force at 0.50" (12.7 mm) stroke: 3.0 Oz (85 gr) Force at 1.00" (25.4 mm) stroke: 1.0 Oz (28 gr) I = Intermittent (50%) Duty Cycle, Maximum On-Time = 100 Seconds Approximate Input Power = 10 Watts Force at 0.10" (2.5 mm) stroke: 31.0 Oz (879 gr) Force at 0.50" (12.7 mm) stroke: 7.0 Oz (198 gr) Force at 1.00" (25.4 mm) stroke: 2.0 Oz (57 gr) L = Long Pulse (25%) Duty Cycle, Maximum On-Time = 15 Seconds Approximate Input Power = 20 Watts Force at 0.10" (2.5 mm) stroke: 45.0 Oz (1276 gr) Force at 0.50" (12.7 mm) stroke: 13.0 Oz (369 gr) Force at 1.00" (25.4 mm) stroke: 3.0 Oz (85 gr) P = Pulse (10%) Duty Cycle, Maximum On-Time = 8 Seconds Approximate Input Power = 50 Watts Force at 0.10" (2.5 mm) stroke: 60.0 Oz (1701 gr) Force at 0.50" (12.7 mm) stroke: 22.0 Oz (624 gr) Force at 1.00" (25.4 mm) stroke: 6.5 Oz (184 gr) Open (Box C) Frame Solenoid, push type, 0.84"(21 mm)W X 0.92"(23 mm)H X 1.75" (44 mm)L. Mounting: Two tapped holes 8-32 (or M4 X 0.7) on the body. Minimum Heat Sink: Equivalent of 4.0" x 4.0" x 0.125" (102 mm x 102 mm x 3.2 mm) Aluminum Plate All values are at 25ºC. Duty Cycle= on time/(on time+off time) in one cycle of operation when voltage is being cycled on and off. V = R × I P = V × I = V² /R = R × I² V = input D.C. voltage (volts) R = solenoid resistance (ohms) I = current used by solenoid (amperes) P = input power to solenoid (watts) Quantity adjustment on next page |
