Solenoid, Rotary, Clockwise, Rev Shaft Ext SOCWN051026

Specifications for Solenoid, Rotary, Clockwise, Rev Shaft Ext SOCWN051026

Solenoid, Rotary, Clockwise, Rev Shaft Ext
item #: SOCWN051026
Made in USA

Availability: in stock - available for immediate shipment

Series R-10-200-CWN
Rotary Solenoid, Clockwise, Reverse Shaft Extension, 2.00" (51 mm) DIA X 1.04" (26 mm) L

Related Optional Products

Full Wave Bridge Rectifier

ELFWBL352

Solenoid Driver Module

ELSOSDM840

Unit Price:
1-4 pieces:	$328.97
5-9 pieces:	$288.55
10-24 pieces:	$257.32
25-49 pieces:	$229.92
50-99 pieces:	$198.32
Prices for larger quantities may be obtained by contacting us or by clicking the RFQ below.
OEM quantities, more than 100 units or special instructions:


select a DC voltage	06	09	12	18	24	30	36	48	72	120

select a duty cycle	C	I	L	P


Special Comments

Quantity adjustment on next page

Series R-10-200-CWN

If the internal wire gauge for winding is predetermined or if the "voltage" is different from the above, enter the desired information in the above box labeled "Special Comments" and select the closest "voltage" and "duty cycle".

C = Continuous (100%) Duty Cycle, Maximum On-Time = Infinite
Approximate Input Power = 11 Watts
Starting Gross Torque: 10.0 Oz-In (720 gr-cm)
Spring Torque: 3.0 Oz-In (216 gr-cm)
Starting Net Torque: 7.0 Oz-In (504 gr-cm)

I = Intermittent (50%) Duty Cycle, Maximum On-Time = 375 Seconds
Approximate Input Power = 22 Watts
Starting Gross Torque: 18.0 Oz-In (1296 gr-cm)
Spring Torque: 3.0 Oz-In (216 gr-cm)
Starting Net Torque: 15.0 Oz-In (1080 gr-cm)

L = Long Pulse (25%) Duty Cycle, Maximum On-Time = 90 Seconds
Approximate Input Power = 44 Watts
Starting Gross Torque: 29.0 Oz-In (2088 gr-cm)
Spring Torque: 3.0 Oz-In (216 gr-cm)
Starting Net Torque: 26.0 Oz-In (1872 gr-cm)

P = Pulse (10%) Duty Cycle, Maximum On-Time = 30 Seconds
Approximate Input Power = 110 Watts
Starting Gross Torque: 48.0 Oz-In (3456 gr-cm)
Spring Torque: 3.0 Oz-In (216 gr-cm)
Starting Net Torque: 45.0 Oz-In (3240 gr-cm)

Rotary Solenoid, Clockwise, 2.00" (51 mm) DIA X 1.04" (26 mm) L, Reverse Shaft Extension.

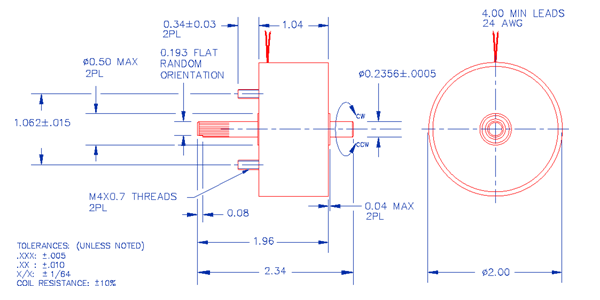

Direction of rotation viewed from the face opposite mounting studs as shown in the mechanical drawing.
Mounting: Two bolts 8-32 (or M4 X 0.7) on the back plate.
Built-in Return Spring
Total Rotational Stroke: 40º
Minimum Heat Sink: Equivalent of 6.0" x 6.0" x 0.125" (152 mm x 152 mm x 3.2 mm) Aluminum Plate
All values are at 25ºC.

Duty Cycle= on time/(on time+off time) in one cycle of operation when voltage is being cycled on and off.

V = R × I
P = V × I = V² /R = R × I²

V = input D.C. voltage (volts)
R = solenoid resistance (ohms)
I = current used by solenoid (amperes)
P = input power to solenoid (watts)
