Solenoid, Rotary, Clockwise, Rev Shaft Ext
item #: SOCWN048026

Made in USA

Availability: in stock - available for immediate shipment

Related Optional Products

Full Wave Bridge Rectifier

ELFWBL352

Solenoid Driver Module

ELSOSDM840

Unit Price:
1-4 pieces:	$304.17
5-9 pieces:	$266.82
10-24 pieces:	$237.90
25-49 pieces:	$212.60
50-99 pieces:	$183.35
Prices for larger quantities may be obtained by contacting us or by clicking the RFQ below.
OEM quantities, more than 100 units or special instructions:


select a DC voltage	06	09	12	18	24	30	36	48	72	120

select a duty cycle	C	I	L	P


Special Comments

Quantity adjustment on next page

Series R-10-190-CWN

If the internal wire gauge for winding is predetermined or if the "voltage" is different from the above, enter the desired information in the above box labeled "Special Comments" and select the closest "voltage" and "duty cycle".

C = Continuous (100%) Duty Cycle, Maximum On-Time = Infinite
Approximate Input Power = 10 Watts
Starting Gross Torque: 7.0 Oz-In (504 gr-cm)
Spring Torque: 3.0 Oz-In (216 gr-cm)
Starting Net Torque: 4.0 Oz-In (288 gr-cm)

I = Intermittent (50%) Duty Cycle, Maximum On-Time = 450 Seconds
Approximate Input Power = 20 Watts
Starting Gross Torque: 13.0 Oz-In (936 gr-cm)
Spring Torque: 3.0 Oz-In (216 gr-cm)
Starting Net Torque: 10.0 Oz-In (720 gr-cm)

L = Long Pulse (25%) Duty Cycle, Maximum On-Time = 90 Seconds
Approximate Input Power = 40 Watts
Starting Gross Torque: 22.0 Oz-In (1584 gr-cm)
Spring Torque: 3.0 Oz-In (216 gr-cm)
Starting Net Torque: 19.0 Oz-In (1368 gr-cm)

P = Pulse (10%) Duty Cycle, Maximum On-Time = 20 Seconds
Approximate Input Power = 100 Watts
Starting Gross Torque: 36.0 Oz-In (2592 gr-cm)
Spring Torque: 3.0 Oz-In (216 gr-cm)
Starting Net Torque: 33.0 Oz-In (2376 gr-cm)

Rotary Solenoid, Clockwise, 1.88" (48 mm) DIA X 1.04" (26 mm) L, Reverse Shaft Extension.

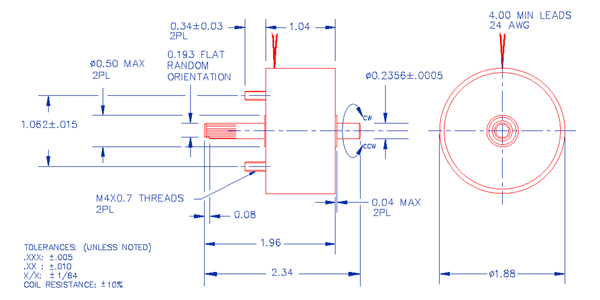

Direction of rotation viewed from the face opposite mounting studs as shown in the mechanical drawing.
Mounting: Two bolts 8-32 (or M4 X 0.7) on the back plate.
Built-in Return Spring
Total Rotational Stroke: 40º
Minimum Heat Sink: Equivalent of 6.0" x 6.0" x 0.125" (152 mm x 152 mm x 3.2 mm) Aluminum Plate
All values are at 25ºC.

Duty Cycle= on time/(on time+off time) in one cycle of operation when voltage is being cycled on and off.

V = R × I
P = V × I = V² /R = R × I²

V = input D.C. voltage (volts)
R = solenoid resistance (ohms)
I = current used by solenoid (amperes)
P = input power to solenoid (watts)
