Solenoid, Tubular, Pull Type
item #:  SOTUL051072

Made in USA



Availability:  in stock - available for immediate shipment

Series S-29-200
Tubular Solenoid, Pull type, 2.00" (51 mm) DIA X 2.85" (72 mm) L

Related Optional Products
Full Wave Bridge Rectifier
ELFWBL352

Solenoid Driver Module
ELSOSDM840

Unit Price:
    1-4 pieces: $301.83
    5-9 pieces: $264.78
10-24 pieces: $236.10
25-49 pieces: $211.00
50-99 pieces: $181.97
Prices for larger quantities may be obtained by contacting us or by clicking the RFQ below.
OEM quantities, more than 100 units or special instructions:

select a DC voltage
06
09
12
18
24
30
36
48
72
120

select a duty cycle
C
I
L
P
Special Comments


Quantity adjustment on next page

Series S-29-200
Optional Plunger Return Spring: SP30 and SP31



If the internal wire gauge for winding is predetermined or if the "voltage" is different from the above, enter the desired information in the above box labeled "Special Comments" and select the closest "voltage" and "duty cycle".

C = Continuous (100%) Duty Cycle, Maximum On-Time = Infinite
Approximate Input Power = 18 Watts
Force at 0.10" (2.5 mm) stroke: 210.0 Oz (5954 gr)
Force at 0.50" (12.7 mm) stroke: 60.0 Oz (1701 gr)
Force at 1.00" (25.4 mm) stroke: 18.0 Oz (510 gr)
Force at 1.40" (35.6 mm) stroke: 6.5 Oz (184 gr)

I = Intermittent (50%) Duty Cycle, Maximum On-Time = 840 Seconds
Approximate Input Power = 36 Watts
Force at 0.10" (2.5 mm) stroke: 270.0 Oz (7655 gr)
Force at 0.50" (12.7 mm) stroke: 110.0 Oz (3119 gr)
Force at 1.00" (25.4 mm) stroke: 40.0 Oz (1134 gr)
Force at 1.60" (40.6 mm) stroke: 7.5 Oz (213 gr)

L = Long Pulse (25%) Duty Cycle, Maximum On-Time = 270 Seconds
Approximate Input Power = 72 Watts
Force at 0.10" (2.5 mm) stroke: 310.0 Oz (8789 gr)
Force at 0.50" (12.7 mm) stroke: 155.0 Oz (4394 gr)
Force at 1.00" (25.4 mm) stroke: 68.0 Oz (1928 gr)
Force at 1.80" (45.7 mm) stroke: 6.5 Oz (184 gr)

P = Pulse (10%) Duty Cycle, Maximum On-Time = 90 Seconds
Approximate Input Power = 180 Watts
Force at 0.10" (2.5 mm) stroke: 400.0 Oz (11340 gr)
Force at 0.50" (12.7 mm) stroke: 255.0 Oz (7229 gr)
Force at 1.00" (25.4 mm) stroke: 165.0 Oz (4678 gr)
Force at 1.90" (48.3 mm) stroke: 9.0 Oz (255 gr)

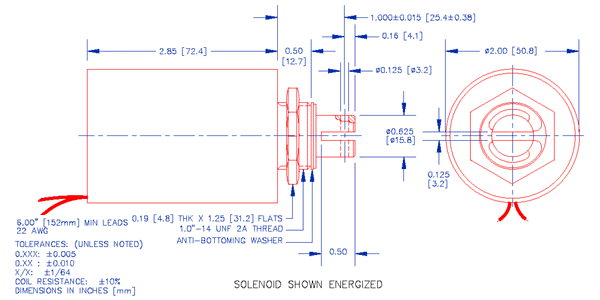

Tubular Solenoid, Pull type, 2.00" (51 mm) DIA X 2.85" (72 mm) L.
Mounting: Threaded front end and matching 1"-14 nut.
Minimum Heat Sink: Equivalent of 6.0" x 6.0" x 0.125" (152 mm x 152 mm x 3.2 mm) Aluminum Plate
All values are at 25ºC.

Duty Cycle= on time/(on time+off time) in one cycle of operation when voltage is being cycled on and off.

V = R × I
P = V × I = V² /R = R × I²

V = input D.C. voltage (volts)
R = solenoid resistance (ohms)
I = current used by solenoid (amperes)
P = input power to solenoid (watts)



Quantity adjustment on next page
