Solenoid, Tubular, Pull Type, SOTUL038056

Specifications for Solenoid, Tubular, Pull Type, SOTUL038056

Solenoid, Tubular, Pull Type
item #: SOTUL038056
Made in USA

Name: Solenoid, Tubular, Pull Type
Brand: MSS
SKU: SOTUL038056
Price: 162.61 USD
Availability: InStock

Availability: in stock - available for immediate shipment

Series S-22-150

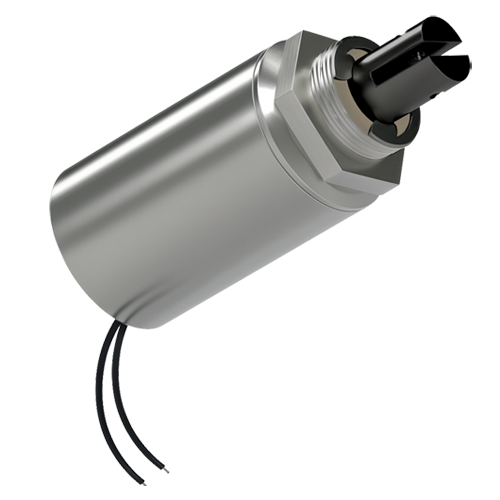

Tubular Solenoid, Pull type, 1.50" (38 mm) DIA X 2.19" (56 mm) L

Related Optional Products

Full Wave Bridge Rectifier

ELFWBL352

Solenoid Driver Module

ELSOSDM840

Unit Price:
1-4 pieces:	$162.61
5-9 pieces:	$142.63
10-24 pieces:	$127.19
25-49 pieces:	$113.62
50-99 pieces:	$98.04
Prices for larger quantities may be obtained by contacting us or by clicking the RFQ below.
OEM quantities, more than 100 units or special instructions:

select a DC voltage	06	09	12	18	24	30	36	48	72	120

select a duty cycle	C	I	L	P


Special Comments

Quantity adjustment on next page

Series S-22-150
Optional Plunger Return Spring: SP30 and SP31

If the internal wire gauge for winding is predetermined or if the "voltage" is different from the above, enter the desired information in the above box labeled "Special Comments" and select the closest "voltage" and "duty cycle".

C = Continuous (100%) Duty Cycle, Maximum On-Time = Infinite
Approximate Input Power = 10 Watts
Force at 0.10" (2.5 mm) stroke: 92.0 Oz (2608 gr)
Force at 0.50" (12.7 mm) stroke: 11.0 Oz (312 gr)
Force at 1.00" (25.4 mm) stroke: 2.0 Oz (57 gr)

I = Intermittent (50%) Duty Cycle, Maximum On-Time = 580 Seconds
Approximate Input Power = 20 Watts
Force at 0.10" (2.5 mm) stroke: 165.0 Oz (4678 gr)
Force at 0.50" (12.7 mm) stroke: 22.0 Oz (624 gr)
Force at 1.00" (25.4 mm) stroke: 2.5 Oz (71 gr)

L = Long Pulse (25%) Duty Cycle, Maximum On-Time = 210 Seconds
Approximate Input Power = 40 Watts
Force at 0.10" (2.5 mm) stroke: 218.0 Oz (6180 gr)
Force at 0.50" (12.7 mm) stroke: 39.0 Oz (1106 gr)
Force at 1.00" (25.4 mm) stroke: 6.5 Oz (184 gr)

P = Pulse (10%) Duty Cycle, Maximum On-Time = 56 Seconds
Approximate Input Power = 100 Watts
Force at 0.10" (2.5 mm) stroke: 330.0 Oz (9356 gr)
Force at 0.50" (12.7 mm) stroke: 110.0 Oz (3119 gr)
Force at 1.00" (25.4 mm) stroke: 20.0 Oz (567 gr)

Tubular Solenoid, Pull type, 1.50" (38 mm) DIA X 2.19" (56 mm) L.
Mounting: Threaded front end and matching 1"-14 nut.
Minimum Heat Sink: Equivalent of 6.0" x 6.0" x 0.125" (152 mm x 152 mm x 3.2 mm) Aluminum Plate
All values are at 25ºC.

Duty Cycle= on time/(on time+off time) in one cycle of operation when voltage is being cycled on and off.

V = R × I
P = V × I = V² /R = R × I²

V = input D.C. voltage (volts)
R = solenoid resistance (ohms)
I = current used by solenoid (amperes)
P = input power to solenoid (watts)

Shipping Weight: 1.6 lb (0.7 kg)
