Two-Axis Integrated Stepper Motor Controller & Driver
item #: MCICAD-2

This product is currectly not available in stock.



Availability:   Not Available

Related Optional Products
Stepper Motor, Size 23, 1.8º per Step, 140 oz-in
MCSM23-200-140-W

Power Supply
MCPWRSPLY-24-33

Unit Price:
1-4 pieces: $1,462.96
5-9 pieces: $1,389.82
10-24 pieces: $1,341.15
25-49 pieces: $1,294.23
50-99 pieces: $1,248.94
Prices for larger quantities may be obtained by contacting us or by clicking the RFQ below.
OEM quantities, more than 100 units or special instructions:


Special Comments



Quantity adjustment on next page

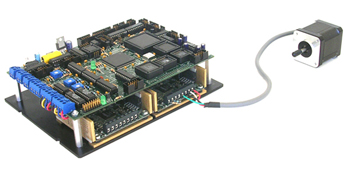

Two-Axis Integrated Controller and Driver

Size: 8.0" (200 mm) X 6.0" (152.4 mm) X 2.0" (50 mm)

Features - Controller

Compact
Multi-Axis
Stand-alone
Built-in Self Test
RS-232 Interface
Flash Memory Based for Easy Field Upgrading of the Controller Code
BASIC-like Programming Language
Powerful Instruction Set, Over 120 Instructions
Handheld Terminal or PC Connection
Proportional Speed Control - Speed Proportional to the Tilt Angle of Joystick
Two Channels of Quadrature Encoder Input



Features - Driver

0.3 Amp A to 7 Amp Phase Current
24 VDC to 80VDC Input Voltage
10 Micro-steps per Step Resolution
Size 11 To 42 Motors
Mid-Band Resonance Compensation
Low-Speed Resonance Nulling Trimpot
Auto Current Reduction
Opto-Isolated Step And Direction Inputs
20W Dissipation At 7 Amps Per Phase
LED Power Indicator
