Electromagnet, Tubular
item #: ELMATU076102

Made in USA



Availability:   in stock - available for immediate shipment

Related Optional Products
Full Wave Bridge Rectifier
ELFWBL352

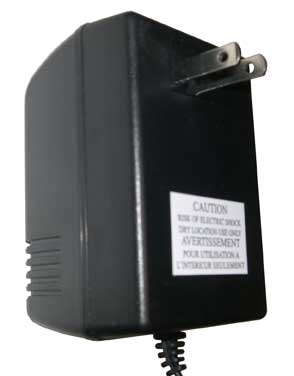

Plug-in Adapter Power Supply, 10.5 VDC, 1300MA
ELPS10D120A1300

Unit Price:
1-4 pieces: $435.09
5-9 pieces: $358.94
10-24 pieces: $298.38
25-49 pieces: $249.23
50-99 pieces: $209.71
Prices for larger quantities may be obtained by contacting us or by clicking the RFQ below.
OEM quantities, more than 100 units or special instructions:

select a DC voltage
06
09
12
18
24
30
36
48
72
120

select a duty cycle
C
I
L
P
Special Comments



Quantity adjustment on next page

Series E-40-300


If the internal wire gauge for winding is predetermined or if the "voltage" is different from the above, enter the desired information in the above box labeled "Special Comments" and select the closest "voltage" and "duty cycle".

C = Continuous (100%) Duty Cycle, Maximum On-Time = Infinite
Approximate Input Power = 12 Watts
Holding force against cold rolled steel with a thickness of:
0.500” (12.7 mm): 242 Lb (109.8 Kgf – 1077 N)
0.375” (9.5 mm): 222 Lb (100.7 Kgf – 988 N)
0.250” (6.4 mm): 209 Lb (94.8 Kgf – 930 N)
0.188” (4.8 mm): 195 Lb (88.5 Kgf – 868 N)

I = Intermittent (50%) Duty Cycle, Maximum On-Time = 2700 Seconds
Approximate Input Power = 24 Watts
Holding force against cold rolled steel with a thickness of:
0.500” (12.7 mm): 273 Lb (123.8 Kgf – 1215 N)
0.375” (9.5 mm): 248 Lb (112.5 Kgf – 1104 N)
0.250” (6.4 mm): 230 Lb (104.3 Kgf – 1023 N)
0.188” (4.8 mm): 207 Lb (93.9 Kgf – 921 N)

L = Long Pulse (25%) Duty Cycle, Maximum On-Time = 900 Seconds
Approximate Input Power = 48 Watts
Holding force against cold rolled steel with a thickness of:
0.500” (12.7 mm): 312 Lb (141.5 Kgf – 1388 N)
0.375” (9.5 mm): 284 Lb (128.8 Kgf – 1264 N)
0.250” (6.4 mm): 264 Lb (119.8 Kgf – 1175 N)
0.188” (4.8 mm): 214 Lb (97.1 Kgf – 952 N)

P = Pulse (10%) Duty Cycle, Maximum On-Time = 240 Seconds
Approximate Input Power = 120 Watts
Holding force against cold rolled steel with a thickness of:
0.500” (12.7 mm): 334 Lb (151.5 Kgf – 1486 N)
0.375” (9.5 mm): 316 Lb (143.3 Kgf – 1406 N)
0.250” (6.4 mm): 280 Lb (127.0 Kgf – 1246 N)
0.188” (4.8 mm): 219 Lb (99.3 Kgf – 975 N)
Available for voltages equal to or greater than 9 Volts DC

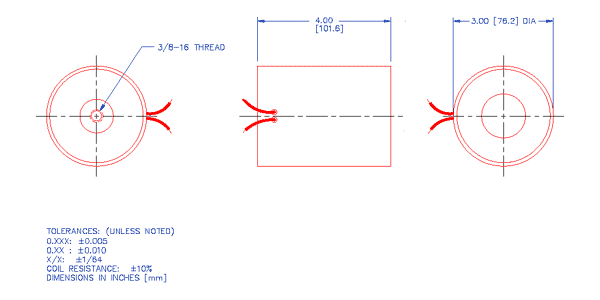

Tubular Electromagnet, 3.00" (76 mm) DIA X 4.00" (102 mm) L.
Mounting: 3/8-16 threaded hole.
Minimum Heat Sink: Equivalent of 4.0" x 4.0" x 0.250" (102 mm x 102 mm x 6.4 mm) metal Plate
All values are at 25ºC.

Duty Cycle= on time/(on time+off time) in one cycle of operation when voltage is being cycled on and off.

V = R × I
P = V × I = V² /R = R × I²

V = input D.C. voltage (volts)
R = electromagnet resistance (ohms)
I = current used by electromagnet (amperes)
P = input power to electromagnet (watts)
