Electromagnet, Tubular, Low Profile ELMATU067040
Specifications for Electromagnet, Tubular, Low Profile ELMATU067040

Electromagnet, Tubular, Low Profile
item #: ELMATU067040
Made in USA



Availability:   in stock - available for immediate shipment

Series E-16-260
Electromagnet, Tubular, Low Profile, 2.63" (67 mm) DIA X 1.56" (40 mm) L

Related Optional Products
ELFWBL352
Full Wave Bridge Rectifier
ELFWBL352

ELPS10D120A1300
Plug-in Adapter Power Supply, 10.5 VDC, 1300MA
ELPS10D120A1300

Unit Price:
1-4 pieces: $215.32
5-9 pieces: $177.62
10-24 pieces: $147.67
25-49 pieces: $123.32
50-99 pieces: $103.81
Prices for larger quantities may be obtained by contacting us or by clicking the RFQ below.
OEM quantities, more than 100 units or special instructions:

select a DC voltage
06
09
12
18
24
30
36
48
72
120

select a duty cycle
C
I
L
P
Special Comments



Quantity adjustment on next page

Series E-16-260


If the internal wire gauge for winding is predetermined or if the "voltage" is different from the above, enter the desired information in the above box labeled "Special Comments" and select the closest "voltage" and "duty cycle".

C = Continuous (100%) Duty Cycle, Maximum On-Time = Infinite
Approximate Input Power = 5 Watts
Holding force against cold rolled steel with a thickness of:
0.500” (12.7 mm): 144 Lb (65318 gr)
0.375” (9.5 mm): 131 Lb (59422 gr)
0.250” (6.4 mm): 119 Lb (53978 gr)
0.188” (4.8 mm): 103 Lb (46721 gr)
0.125” (3.2 mm): 64 Lb (29030 gr)

I = Intermittent (50%) Duty Cycle, Maximum On-Time = 2000 Seconds
Approximate Input Power = 10 Watts
Holding force against cold rolled steel with a thickness of:
0.500” (12.7 mm):176 Lb (79834 gr)
0.375” (9.5 mm): 159 Lb (72122 gr)
0.250” (6.4 mm): 145 Lb (65772 gr)
0.188” (4.8 mm): 118 Lb (53525 gr)
0.125” (3.2 mm): 75 Lb (34020 gr)

L = Long Pulse (25%) Duty Cycle, Maximum On-Time = 600 Seconds
Approximate Input Power = 20 Watts
Holding force against cold rolled steel with a thickness of:
0.500” (12.7 mm):218 Lb (98885 gr)
0.375” (9.5 mm): 195 Lb (88452 gr)
0.250” (6.4 mm): 176 Lb (79833 gr)
0.188” (4.8 mm): 136 Lb (61690 gr)
0.125” (3.2 mm): 88 Lb (39917 gr)

P = Pulse (10%) Duty Cycle, Maximum On-Time = 120 Seconds
Approximate Input Power = 50 Watts
Holding force against cold rolled steel with a thickness of:
0.500” (12.7 mm):283 Lb (128369 gr)
0.375” (9.5 mm): 257 Lb (116575 gr)
0.250” (6.4 mm): 221 Lb (100246 gr)
0.188” (4.8 mm): 159 Lb (72122 gr)
0.125” (3.2 mm): 105 Lb (47628 gr)

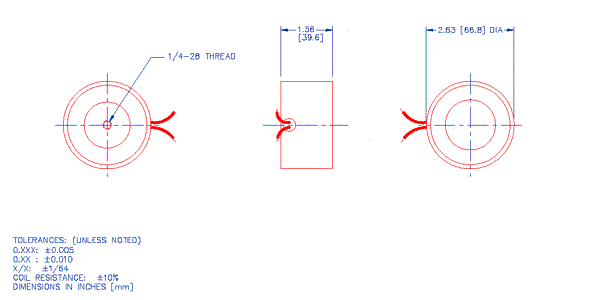

Tubular Low Profile Electromagnet, 2.63" (67 mm) DIA X 1.56" (40 mm) L.
Mounting: 1/4 -28 threaded hole.
Minimum Heat Sink: Equivalent of 3.0" x 3.0" x 0.25" (76 mm x 76 mm x 6.4 mm) metal Plate
All values are at 25ºC.

Duty Cycle= on time/(on time+off time) in one cycle of operation when voltage is being cycled on and off.

V = R × I
P = V × I = V² /R = R × I²

V = input D.C. voltage (volts)
R = electromagnet resistance (ohms)
I = current used by electromagnet (amperes)
P = input power to electromagnet (watts)
