Electromagnet, Tubular
item #: ELMATU025050

Made in USA



Availability:   in stock - available for immediate shipment

Related Optional Products
Full Wave Bridge Rectifier
ELFWBL352

Plug-in Adapter Power Supply, 10.5 VDC, 1300MA
ELPS10D120A1300

Unit Price:
1-4 pieces: $86.56
5-9 pieces: $71.43
10-24 pieces: $59.39
25-49 pieces: $49.60
50-99 pieces: $41.74
Prices for larger quantities may be obtained by contacting us or by clicking the RFQ below.
OEM quantities, more than 100 units or special instructions:

select a DC voltage
06
09
12
18
24
30
36
48
72
120

select a duty cycle
C
I
L
P
Special Comments



Quantity adjustment on next page

Series E-20-100


If the internal wire gauge for winding is predetermined or if the "voltage" is different from the above, enter the desired information in the above box labeled "Special Comments" and select the closest "voltage" and "duty cycle".

C = Continuous (100%) Duty Cycle, Maximum On-Time = Infinite
Approximate Input Power = 4 Watts
Holding force against cold rolled steel with a thickness of:
0.125” (3.2 mm): 22 Lb (9,979 gr)
0.063” (1.6 mm): 15 Lb (6,804 gr)

I = Intermittent (50%) Duty Cycle, Maximum On-Time = 600 Seconds
Approximate Input Power = 8 Watts
Holding force against cold rolled steel with a thickness of:
0.125” (3.2 mm): 27 Lb (12,247 gr)
0.063” (1.6 mm): 16 Lb (7,258 gr)

L = Long Pulse (25%) Duty Cycle, Maximum On-Time = 120 Seconds
Approximate Input Power = 16 Watts
Holding force against cold rolled steel with a thickness of:
0.125” (3.2 mm): 33 Lb (14,969 gr)
0.063” (1.6 mm): 18 Lb (8,165 gr)

P = Pulse (10%) Duty Cycle, Maximum On-Time = 30 Seconds
Approximate Input Power = 40 Watts
Holding force against cold rolled steel with a thickness of:
0.125” (3.2 mm): 39 Lb (17,690 gr)
0.063” (1.6 mm): 19 Lb (8,618 gr)

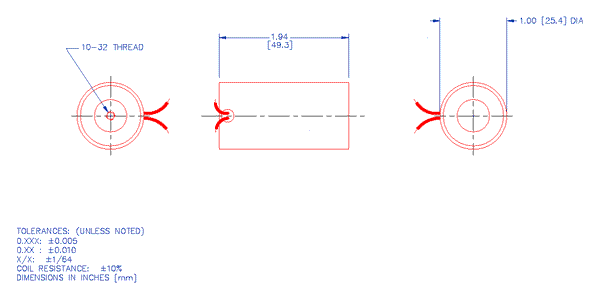

Tubular Electromagnet, 1.00" (25 mm) DIA X 1.94" (49 mm) L.
Mounting: 10-32 threaded hole.
Minimum Heat Sink: Equivalent of 4.0" x 4.0" x 0.125" (101 mm x 101 mm x 3.2 mm) metal Plate
All values are at 25ºC.

Duty Cycle= on time/(on time+off time) in one cycle of operation when voltage is being cycled on and off.

V = R × I
P = V × I = V² /R = R × I²

V = input D.C. voltage (volts)
R = electromagnet resistance (ohms)
I = current used by electromagnet (amperes)
P = input power to electromagnet (watts)
