Specifications for Linear DC Motor, MOLDC05116501

Linear DC Motor
item #: MOLDC05116501

Name: Linear DC Motor
Brand: MSS
SKU: MOLDC05116501
Price: 1875.18 USD
Availability: InStock

Availability: in stock - available for immediate shipment

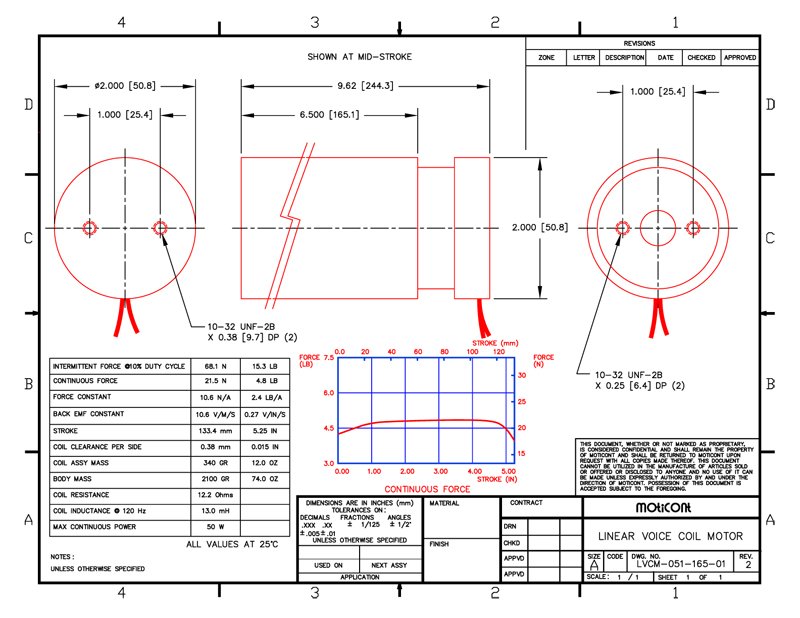

DC Linear Motor, Tubular, 2.00" (51 mm) DIA X 6.50" (165 mm) L

Related Optional Products

Single-Axis Integrated Servo Motor Controller & Driver

MCICADSRVO-1

Unit Price:
1-4 pieces:	$1,875.18
5-9 pieces:	$1,623.22
10-24 pieces:	$1,437.70
25-49 pieces:	$1,254.79
50-99 pieces:	$1,093.02
Prices for larger quantities may be obtained by contacting us or by clicking the RFQ below.
OEM quantities, more than 100 units or special instructions:




Special Comments

Quantity adjustment on next page

All Values at 25�C
Intermittent Force at 10% Duty Cycle = 15.3 lb (68.1 N)
Continuous Force = 4.8 lb (21.5 N)
Force Constant = 2.4 lb/A (10.6 N/A)
Back EMF Constant = 0.27 V/IN/S (10.6 V/M/S)
Stroke = 5.25 IN (133.4 mm)
Coil Clearance Per Side = 0.015 IN (0.38 mm)
Coil Assembly Mass = 12.0 Oz (340 GR)
Body Mass = 74 Oz (2100 GR)
Coil Resistance = 12.2 Ohms
Coil Inductance at 120 Hz = 13.0 mH
Maximum Continuous Power = 50.0 W

Linear DC Motors, Voice Coil Motors (VCM) or Voice Coil Actuators (VCA) are the simplest type of electric motors. These motors consist of two separate parts; the magnetic housing and the coil. Applying a voltage across the terminals of the motor causes the motor to move to one direction. Reversing the polarity of the applied voltage will move the motor to the opposite direction. The generated force is proportional to the current that flows through the motor coil. This force is almost constant in the specified stroke range of the motor.

Voice coil motors do not need commutation and using a position sensor, positioning accuracies of less than one micron or 0.00004 inches are achievable.

The non-commuted motor construction increases reliability. The direct coupling of the motor to the load allows for fast acceleration / deceleration and high speed operation.

A customer supplied linear bearing is required to support the moving coil.

This motor may be used in conjunction with a position sensor and a motion controller for accurate positioning.
For proper heat sinking the motor may need to be installed on a metallic body.

Shipping Weight: 11.5 lb (5.2 kg)
