Solenoid, AC, Pull Type
item #: SOACL030041



Availability:   in stock - available for immediate shipment




Unit Price:
1-4 pieces: $115.92
5-9 pieces: $101.18
10-24 pieces: $90.03
25-49 pieces: $80.08
50-99 pieces: $68.79
Prices for larger quantities may be obtained by contacting us or by clicking the RFQ below.
OEM quantities, more than 100 units or special instructions:

230

C
Special Comments



Quantity adjustment on next page

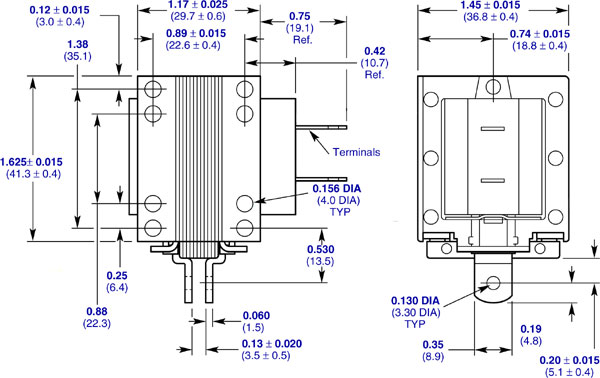

A.C. Laminated Solenoid, Pull type, 230 VAC 60 Hz, Continuous(100%) Duty, 1.17"(30 mm)W X 1.45"(37 mm)H X 1.63"(42 mm)L.
Mounting: Eight holes on the body.
Captive Plunger
Maximum Stroke=0.80" (20 mm)
Internal Resistance = 470 Ohms
Minimum Heat Sink: Equivalent of 6.0" x 6.0" x 0.125" (152 mm x 152 mm x 3.2 mm) Aluminum Plate

Force at 0.10" (2.5 mm) stroke: 36.0 Oz (1021 gr)
Force at 0.50" (12.7 mm) stroke: 16.0 Oz (454 gr)
Force at 0.75" (19.1 mm) stroke: 4.8 Oz (136 gr)
