Technical specifications and dimensions for ELMATU032013

Electromagnet, Tubular
item #: ELMATU032013

Name: Electromagnet, Tubular
Brand: ElectroMechanicsOnline
SKU: ELMATU032013
Price: 101.0300 USD
Availability: InStock

Made in USA

Availability: in stock - available for immediate shipment

Series E-05-125
Electromagnet, Tubular, 1.25" (32 mm) DIA X 0.50" (13 mm) L

Related Optional Products

Full Wave Bridge Rectifier

ELFWBL352

Plug-in Adapter Power Supply, 10.5 VDC, 1300MA

ELPS10D120A1300

Unit Price:
1-4 pieces:	$101.03
5-9 pieces:	$83.36
10-24 pieces:	$69.32
25-49 pieces:	$57.90
50-99 pieces:	$48.72
Prices for larger quantities may be obtained by contacting us or by clicking the RFQ below.
OEM quantities, more than 100 units or special instructions:

select a DC voltage	03	06	09	12	18	24	30	36	48

select a duty cycle	C	I	L	P


Special Comments

Quantity adjustment on next page

Series E-05-125

If the internal wire gauge for winding is predetermined or if the "voltage" is different from the above, enter the desired information in the above box labeled "Special Comments" and select the closest "voltage" and "duty cycle".

C = Continuous (100%) Duty Cycle, Maximum On-Time = Infinite
Approximate Input Power = 1.25 Watts
Holding force against cold rolled steel with a thickness of:
0.125" (3.2 mm): 15 Lb (66 N)
0.063" (1.6 mm): 11 Lb (50 N)

I = Intermittent (50%) Duty Cycle, Maximum On-Time = 420 Seconds
Approximate Input Power = 2.5 Watts
Holding force against cold rolled steel with a thickness of:
0.125" (3.2 mm): 19 Lb (86 N)
0.063" (1.6 mm): 14 Lb (63 N)

L = Long Pulse (25%) Duty Cycle, Maximum On-Time = 120 Seconds
Approximate Input Power = 5 Watts
Holding force against cold rolled steel with a thickness of:
0.125" (3.2 mm): 26 Lb (117 N)
0.063" (1.6 mm): 18 Lb (80 N)

P = Pulse (10%) Duty Cycle, Maximum On-Time = 30 Seconds
Approximate Input Power = 12.5 Watts
Holding force against cold rolled steel with a thickness of:
0.125" (3.2 mm): 37 Lb (164 N)
0.063" (1.6 mm): 22 Lb (97 N)

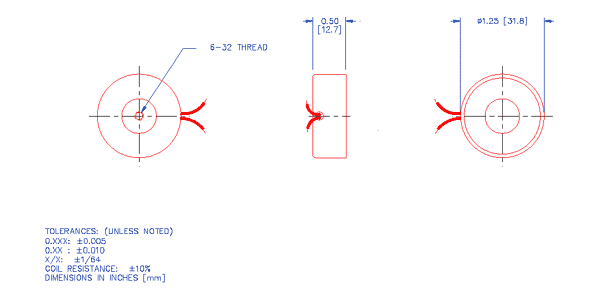

Tubular Electromagnet, 1.25" (32 mm) DIA X 0.50" (13 mm) L.
Mounting: 6-32 threaded hole.
Minimum Heat Sink: Equivalent of 2.0" x 2.0" x 0.125" (51 mm x 51 mm x 3.2 mm) metal Plate
All values are at 25ºC.

Duty Cycle= on time/(on time+off time) in one cycle of operation when voltage is being cycled on and off.

V = R × I
P = V × I = V² /R = R × I²

V = input D.C. voltage (volts)
R = electromagnet resistance (ohms)
I = current used by electromagnet (amperes)
P = input power to electromagnet (watts)

Shipping Weight: 0.6 lb (0.3 kg)
