Solenoid, Tubular, Push Type, SOTUH051072

Specifications for Solenoid, Tubular, Push Type, SOTUH051072

Solenoid, Tubular, Push Type
item #: SOTUH051072
Made in USA

Availability: in stock - available for immediate shipment

Series S-29-200-H

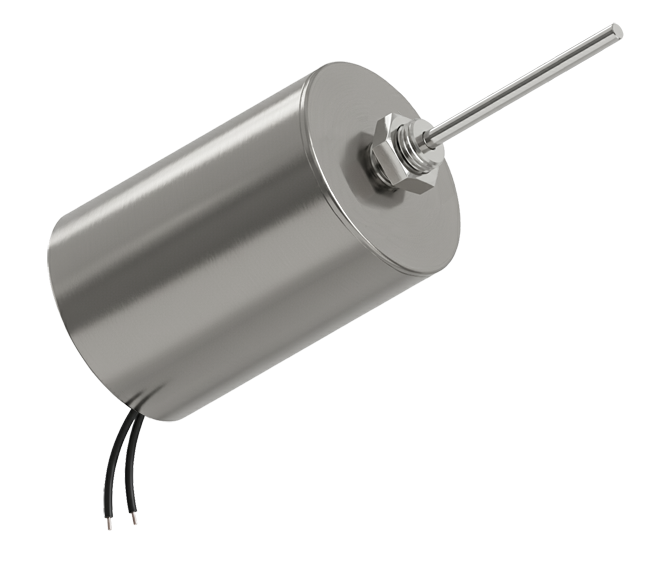

Tubular Solenoid, Push type, 2.00" (51 mm) DIA X 2.85" (72 mm) L

Related Optional Products

Full Wave Bridge Rectifier

ELFWBL352

Solenoid Driver Module

ELSOSDM840

Unit Price:
1-4 pieces:	$329.56
5-9 pieces:	$289.06
10-24 pieces:	$257.80
25-49 pieces:	$230.33
50-99 pieces:	$198.69
Prices for larger quantities may be obtained by contacting us or by clicking the RFQ below.
OEM quantities, more than 100 units or special instructions:

select a DC voltage	06	09	12	18	24	30	36	48	72	120

select a duty cycle	C	I	L	P


Special Comments

Quantity adjustment on next page

Series S-29-200-H
Optional Plunger Return Spring: SP30 and SP31

If the internal wire gauge for winding is predetermined or if the "voltage" is different from the above, enter the desired information in the above box labeled "Special Comments" and select the closest "voltage" and "duty cycle".

C = Continuous (100%) Duty Cycle, Maximum On-Time = Infinite
Approximate Input Power = 18 Watts
Force at 0.10" (2.5 mm) stroke: 210.0 Oz (5954 gr)
Force at 0.50" (12.7 mm) stroke: 48.0 Oz (1361 gr)
Force at 1.00" (25.4 mm) stroke: 14.0 Oz (397 gr)
Force at 1.40" (35.6 mm) stroke: 4.5 Oz (128 gr)

I = Intermittent (50%) Duty Cycle, Maximum On-Time = 840 Seconds
Approximate Input Power = 36 Watts
Force at 0.10" (2.5 mm) stroke: 270.0 Oz (7655 gr)
Force at 0.50" (12.7 mm) stroke: 96.0 Oz (2722 gr)
Force at 1.00" (25.4 mm) stroke: 25.0 Oz (709 gr)
Force at 1.60" (40.6 mm) stroke: 4.5 Oz (128 gr)

L = Long Pulse (25%) Duty Cycle, Maximum On-Time = 270 Seconds
Approximate Input Power = 72 Watts
Force at 0.10" (2.5 mm) stroke: 310.0 Oz (8789 gr)
Force at 0.50" (12.7 mm) stroke: 155.0 Oz (4394 gr)
Force at 1.00" (25.4 mm) stroke: 52.0 Oz (1474 gr)
Force at 1.70" (43.2 mm) stroke: 6.0 Oz (170 gr)

P = Pulse (10%) Duty Cycle, Maximum On-Time = 90 Seconds
Approximate Input Power = 180 Watts
Force at 0.10" (2.5 mm) stroke: 400.0 Oz (11340 gr)
Force at 0.50" (12.7 mm) stroke: 255.0 Oz (7229 gr)
Force at 1.00" (25.4 mm) stroke: 130.0 Oz (3686 gr)
Force at 1.80" (45.7 mm) stroke: 9.5 Oz (269 gr)

Tubular Solenoid, push type, 2.00" (51 mm) DIA X 2.85" (72 mm) L.
Mounting: Threaded front end and matching 7/16"-14 nut.
Minimum Heat Sink: Equivalent of 6.0" x 6.0" x 0.125" (152 mm x 152 mm x 3.2 mm) Aluminum Plate
All values are at 25ºC.

Duty Cycle= on time/(on time+off time) in one cycle of operation when voltage is being cycled on and off.

V = R × I
P = V × I = V² /R = R × I²

V = input D.C. voltage (volts)
R = solenoid resistance (ohms)
I = current used by solenoid (amperes)
P = input power to solenoid (watts)
