Solenoid, Tubular, Push Type, SOTUH038072

Specifications for Solenoid, Tubular, Push Type, SOTUH038072

Solenoid, Tubular, Push Type
item #: SOTUH038072
Made in USA

Availability: in stock - available for immediate shipment

Series S-29-150-H

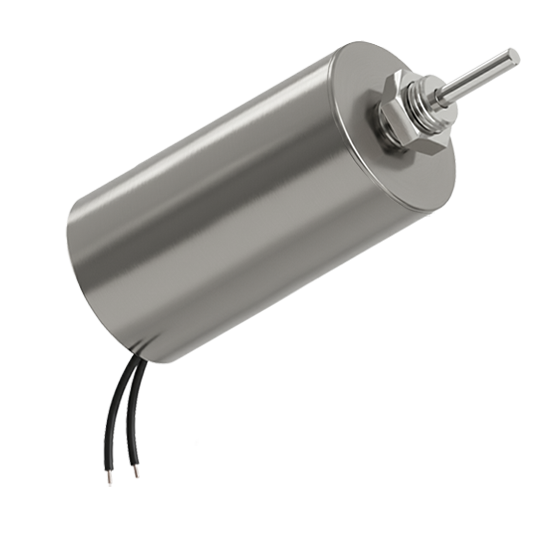

Tubular Solenoid, Push type, 1.50" (38 mm) DIA X 2.85" (72 mm) L

Related Optional Products

Full Wave Bridge Rectifier

ELFWBL352

Solenoid Driver Module

ELSOSDM840

Unit Price:
1-4 pieces:	$195.02
5-9 pieces:	$171.06
10-24 pieces:	$152.54
25-49 pieces:	$136.29
50-99 pieces:	$117.51
Prices for larger quantities may be obtained by contacting us or by clicking the RFQ below.
OEM quantities, more than 100 units or special instructions:

select a DC voltage	06	09	12	18	24	30	36	48	72	120

select a duty cycle	C	I	L	P


Special Comments

Quantity adjustment on next page

Series S-29-150-H
Optional Plunger Return Spring: SP30 and SP31

If the internal wire gauge for winding is predetermined or if the "voltage" is different from the above, enter the desired information in the above box labeled "Special Comments" and select the closest "voltage" and "duty cycle".

C = Continuous (100%) Duty Cycle, Maximum On-Time = Infinite
Approximate Input Power = 14 Watts
Force at 0.10" (2.5 mm) stroke: 140.0 Oz (3969 gr)
Force at 0.50" (12.7 mm) stroke: 22.0 Oz (624 gr)
Force at 1.00" (25.4 mm) stroke: 7.0 Oz (198 gr)

I = Intermittent (50%) Duty Cycle, Maximum On-Time = 780 Seconds
Approximate Input Power = 28 Watts
Force at 0.10" (2.5 mm) stroke: 210.0 Oz (5954 gr)
Force at 0.50" (12.7 mm) stroke: 44.0 Oz (1247 gr)
Force at 1.00" (25.4 mm) stroke: 16.0 Oz (454 gr)

L = Long Pulse (25%) Duty Cycle, Maximum On-Time = 180 Seconds
Approximate Input Power = 56 Watts
Force at 0.10" (2.5 mm) stroke: 245.0 Oz (6946 gr)
Force at 0.50" (12.7 mm) stroke: 70.0 Oz (1985 gr)
Force at 1.00" (25.4 mm) stroke: 25.0 Oz (709 gr)

P = Pulse (10%) Duty Cycle, Maximum On-Time = 70 Seconds
Approximate Input Power = 140 Watts
Force at 0.10" (2.5 mm) stroke: 340.0 Oz (9639 gr)
Force at 0.50" (12.7 mm) stroke: 160.0 Oz (4536 gr)
Force at 1.00" (25.4 mm) stroke: 80.0 Oz (2268 gr)

Tubular Solenoid, push type, 1.50" (38 mm) DIA X 2.85" (72 mm) L.
Mounting: Threaded front end and matching 7/16"-14 nut.
Minimum Heat Sink: Equivalent of 6.0" x 6.0" x 0.125" (152 mm x 152 mm x 3.2 mm) Aluminum Plate
All values are at 25ºC.

Duty Cycle= on time/(on time+off time) in one cycle of operation when voltage is being cycled on and off.

V = R × I
P = V × I = V² /R = R × I²

V = input D.C. voltage (volts)
R = solenoid resistance (ohms)
I = current used by solenoid (amperes)
P = input power to solenoid (watts)

Quantity adjustment on next page
